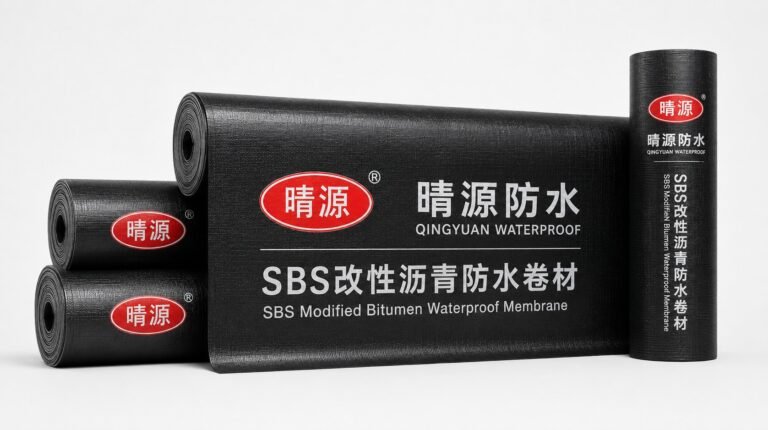

SBS modified bituminous waterproof membrane is a high-performance heat-applied waterproofing material widely used in roofs, basements, and various construction waterproofing projects.
It is made from high-quality bitumen modified with SBS (Styrene-Butadiene-Styrene) elastomer and reinforced with polyester or fiberglass base materials.
Compared with traditional bituminous membranes, it offers significantly improved temperature resistance, aging resistance, and elongation performance, making it suitable for complex climates and high-standard construction projects.
Key Features & Benefits
When waterproofing systems require reliable durability, excellent temperature adaptability, and proven performance, QINGYUAN SBS Modified Bitumen Waterproof Membrane provides a high-performance solution for roofs, underground structures, and infrastructure projects.
Excellent temperature resistance maintains stable performance from -25℃ to 105℃ without cracking or flowing.
High elasticity and flexibility allow the membrane to adapt to building movement, settlement, and thermal expansion.
Strong reinforced structure with polyester or fiberglass carriers provides excellent tensile strength and crack resistance.
Reliable waterproof performance withstands 0.3MPa water pressure without leakage, creating long-term protection.
Torch-welded joints form a seamless waterproof layer and effectively prevent water migration between overlaps.
Excellent aging and UV resistance ensures long-term outdoor durability under harsh weather conditions.
Strong resistance to acids, alkalis, and soil corrosion provides reliable protection for underground applications.
Mature torch-applied installation technology enables efficient construction and easy maintenance.
Long service life provides 20–25 years outdoor protection and over 30 years performance in underground applications.
Our Product Specifications
- High temperature resistance up to 105°C
- Cold-proof: -25°C low temperature flexibility without cracking
- Waterproof: 0.3MPa water pressure resistance for 30 minutes
- Strong tensile: ≥800N/50mm tensile strength for structural durability
- Flexible elongation: ≥40% elongation adapts to building movement
- High adhesion: Fully bonded torch-applied system with zero channel leakage
- Long lifespan: 20–25 years roof durability, 30+ years underground use
- Standard thickness: 3mm / 4mm / 5mm available for different applications
You get more than waterproofing — you get long-term protection, structural stability, and worry-free performance in every climate.
Standard Construction Process
Professional torch-applied installation methods ensure strong bonding, reliable sealing, and long-lasting waterproof performance for various construction projects.
Base Surface Preparation
Clean dust, debris, loose materials, and uneven areas from the substrate. Ensure the surface is solid, flat, dry, and free from standing water before applying primer.
Detail Reinforcement Treatment
Install additional SBS membrane layers at critical areas such as corners, pipe penetrations, drainage channels, and expansion joints.
Membrane Layout & Positioning
Arrange the membrane according to the project design and roof slope. Pre-position the rolls and mark alignment lines to ensure accurate installation.

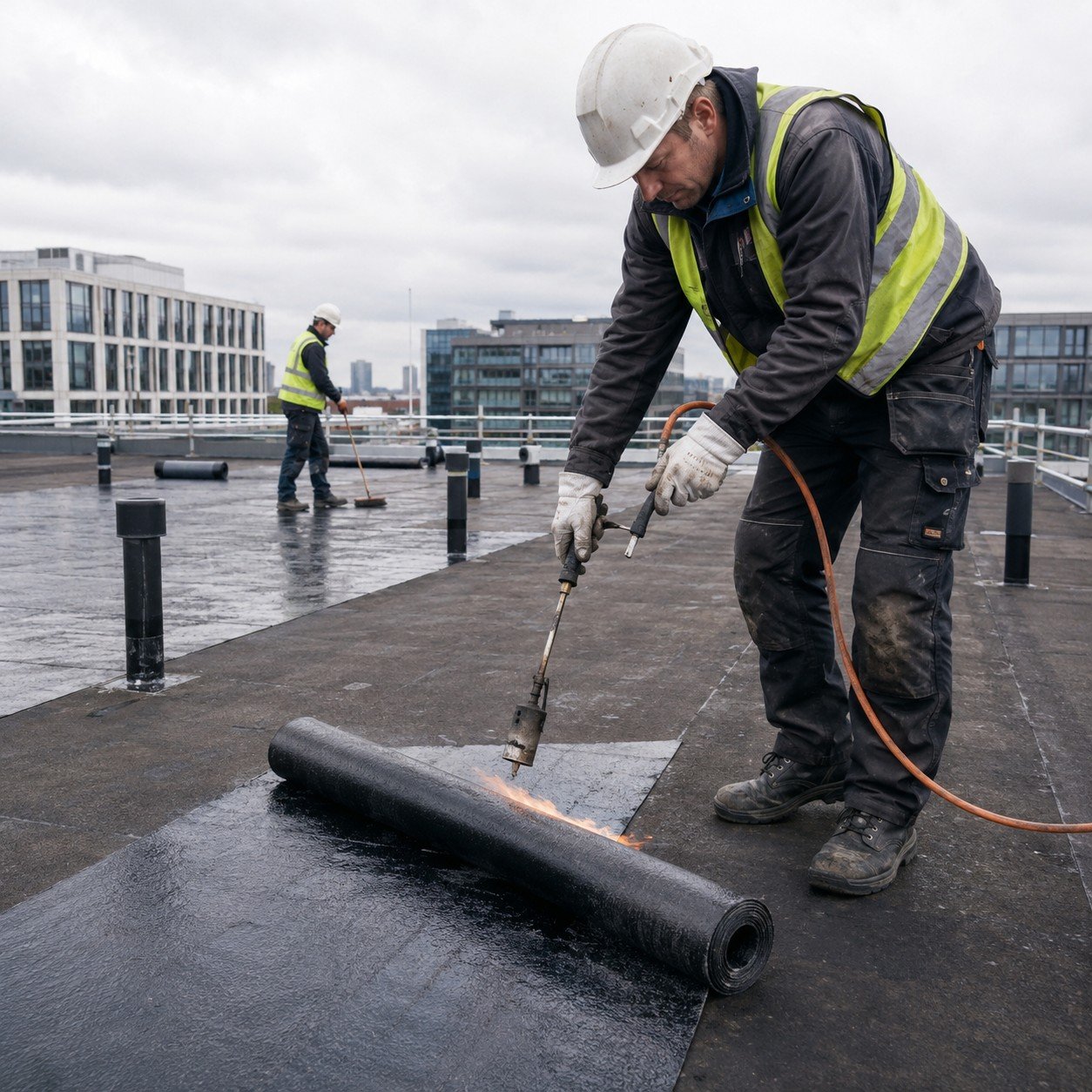

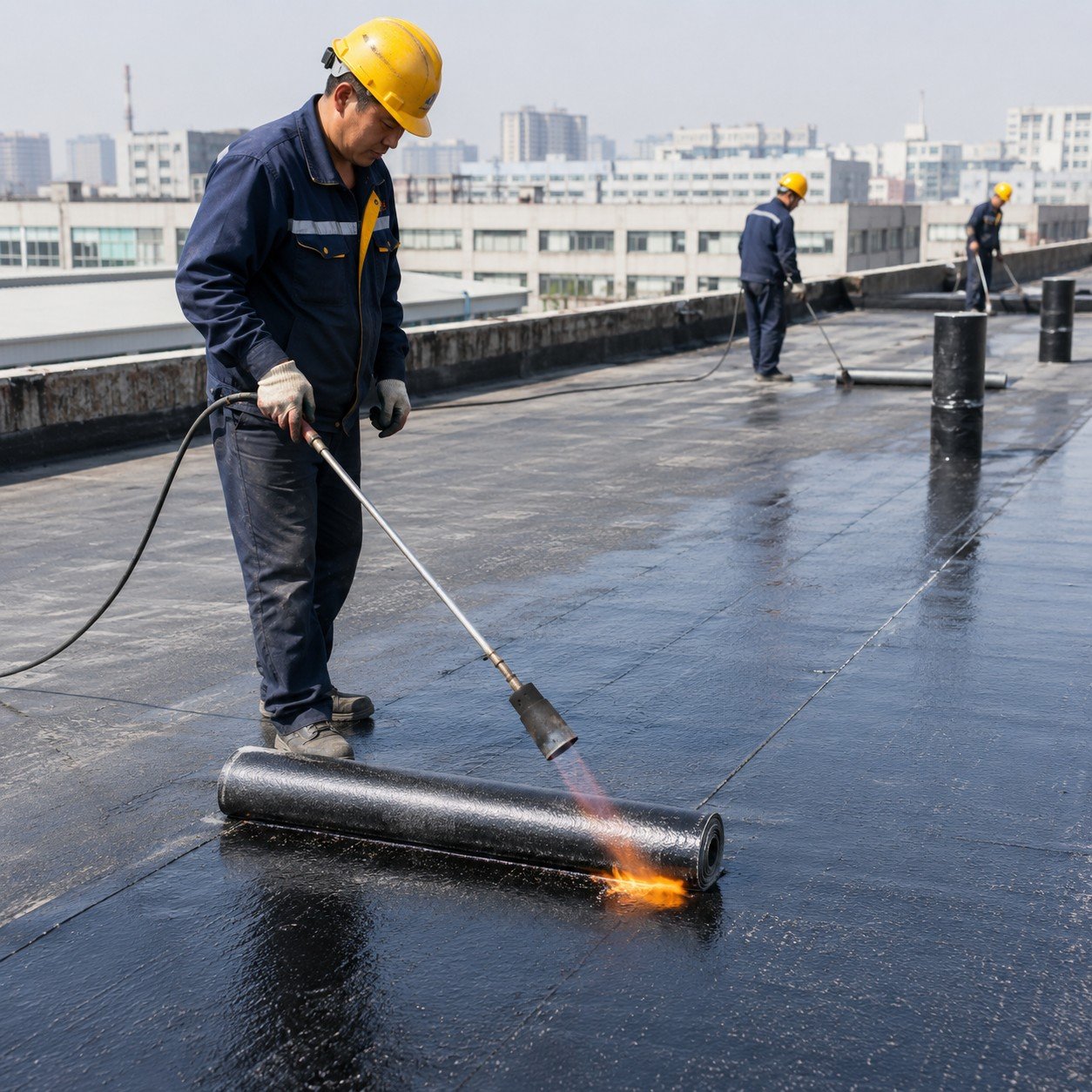

Torch Application & Rolling
Heat the underside of the membrane with a torch until the asphalt layer melts, then roll forward while pressing firmly to achieve complete bonding.
Overlap Welding & Sealing
Heat the overlap areas and press them together. Ensure sufficient asphalt flow at joints to create sealed connections without gaps or edge lifting.
Water Testing & Protective Layer Installation
Perform a 24–48 hour water test after installation. Apply mortar, concrete, or insulation protection layers where required.
Our Guarantee
As a trusted waterproofing material manufacturer, QINGYUAN Waterproof focuses on product innovation, precise manufacturing, and strict quality management. We ensure every roll is produced according to standard specifications, providing consistent quality, reliable performance, and dependable solutions for global construction projects.
1. Raw Material Assurance
We use high-grade bitumen and SBS elastomer to ensure stable modification performance and consistent product quality.
2. Manufacturing Quality Control
Every roll is produced under standardized manufacturing processes with strict control of thickness, weight, and surface uniformity.
3. Performance Compliance Assurance
All products are tested according to GB 18242-2008 standard, ensuring key performance such as tensile strength, flexibility, and waterproofing meet requirements.
4. Factory Consistency Assurance
We ensure stable batch-to-batch production consistency to support reliable large-scale engineering supply.

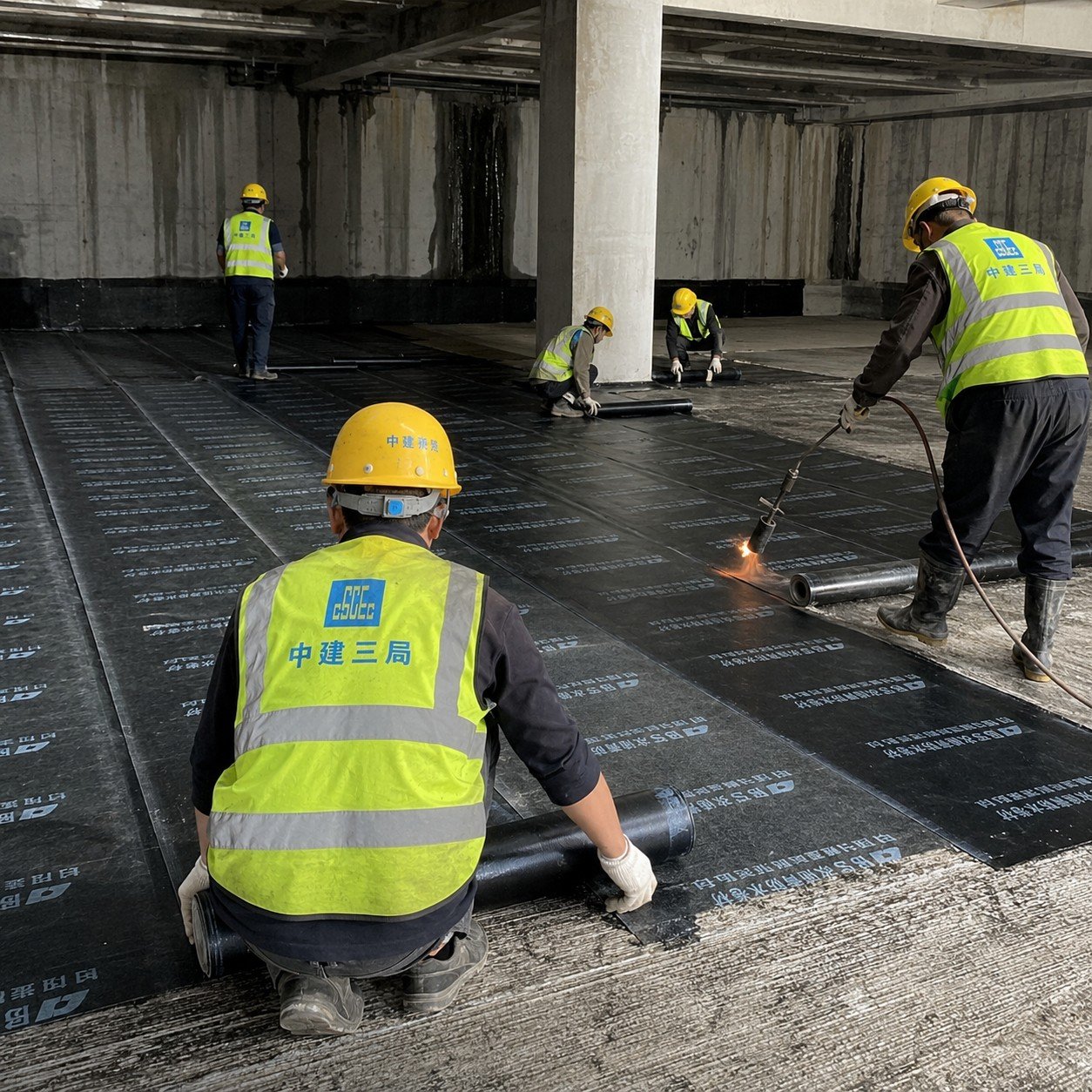

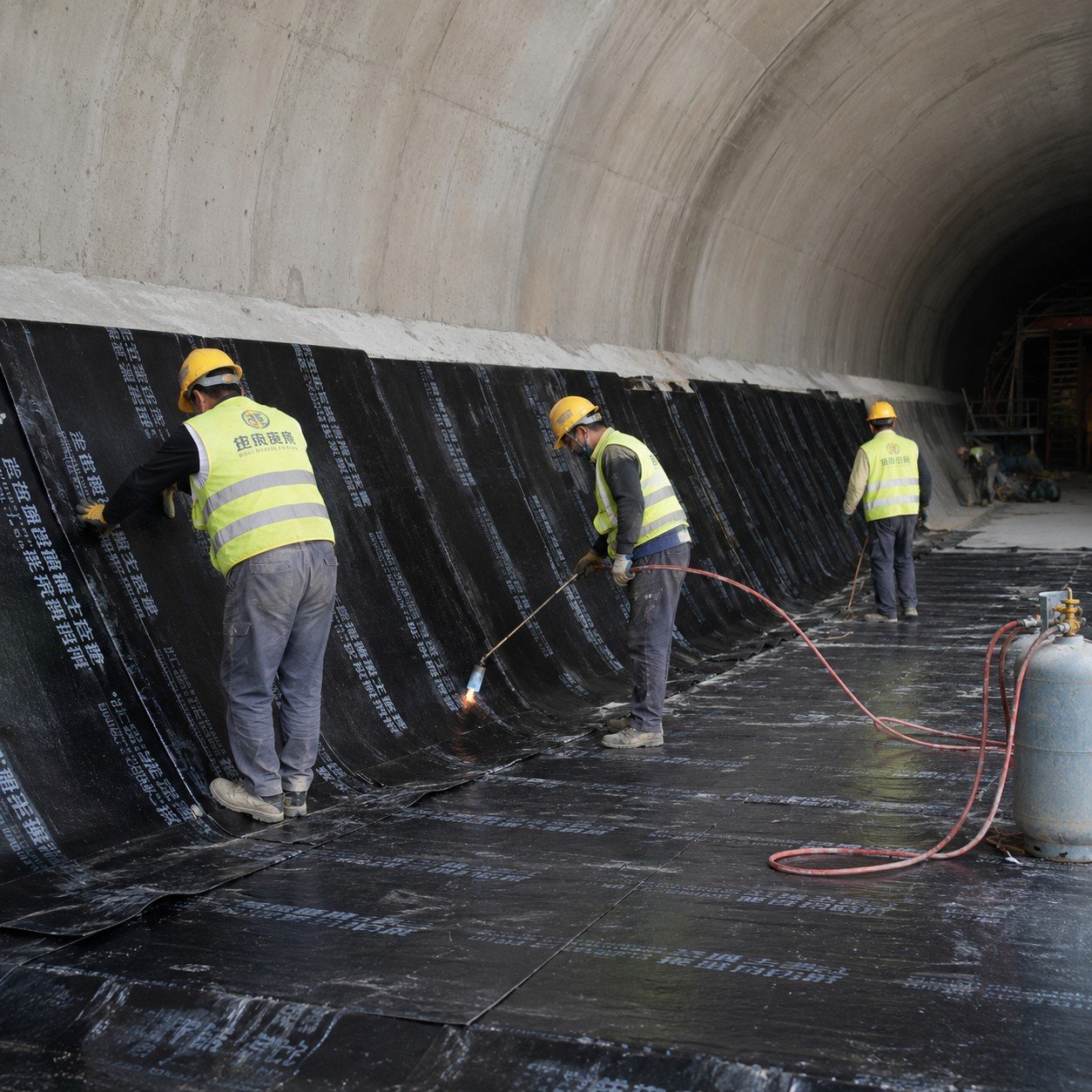

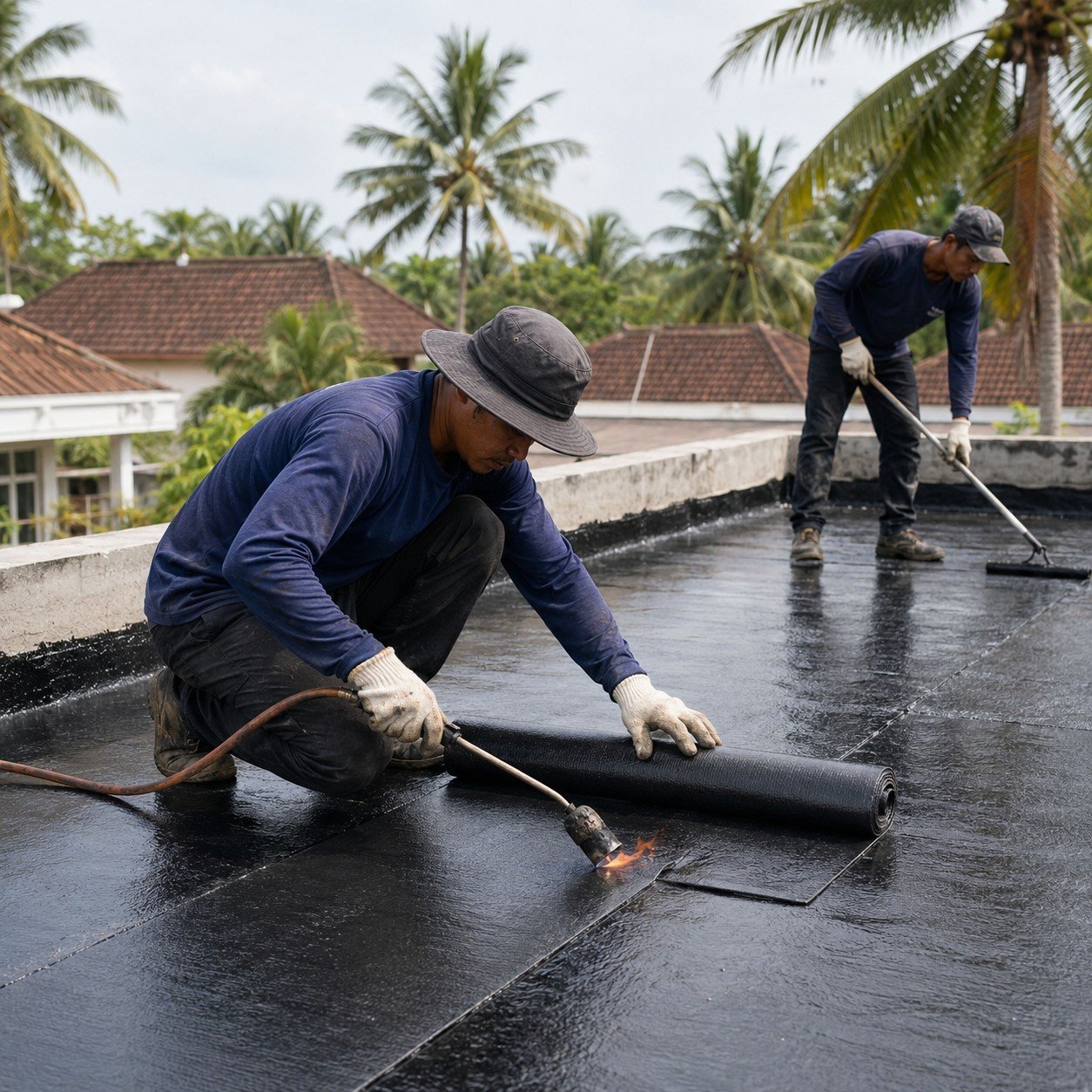

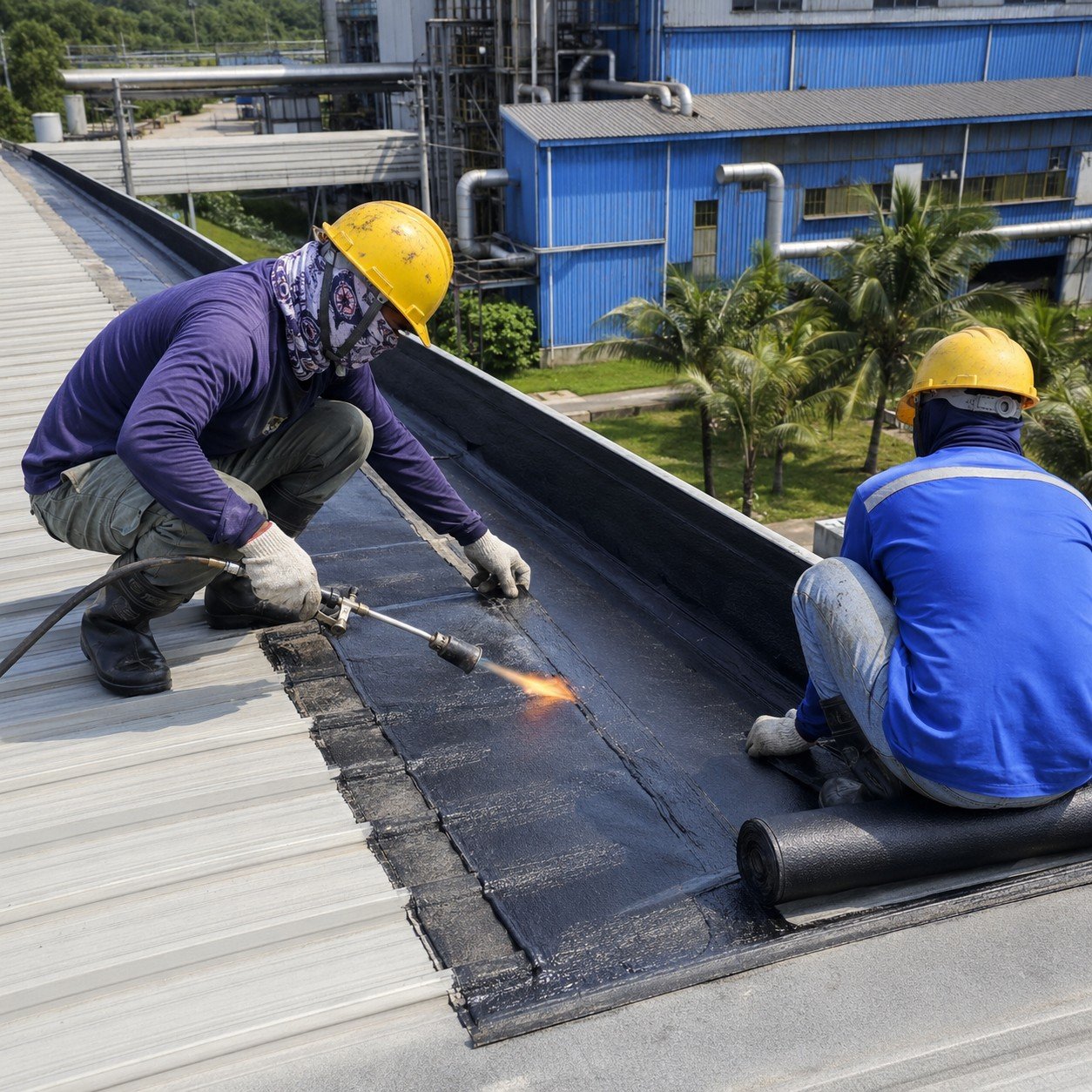

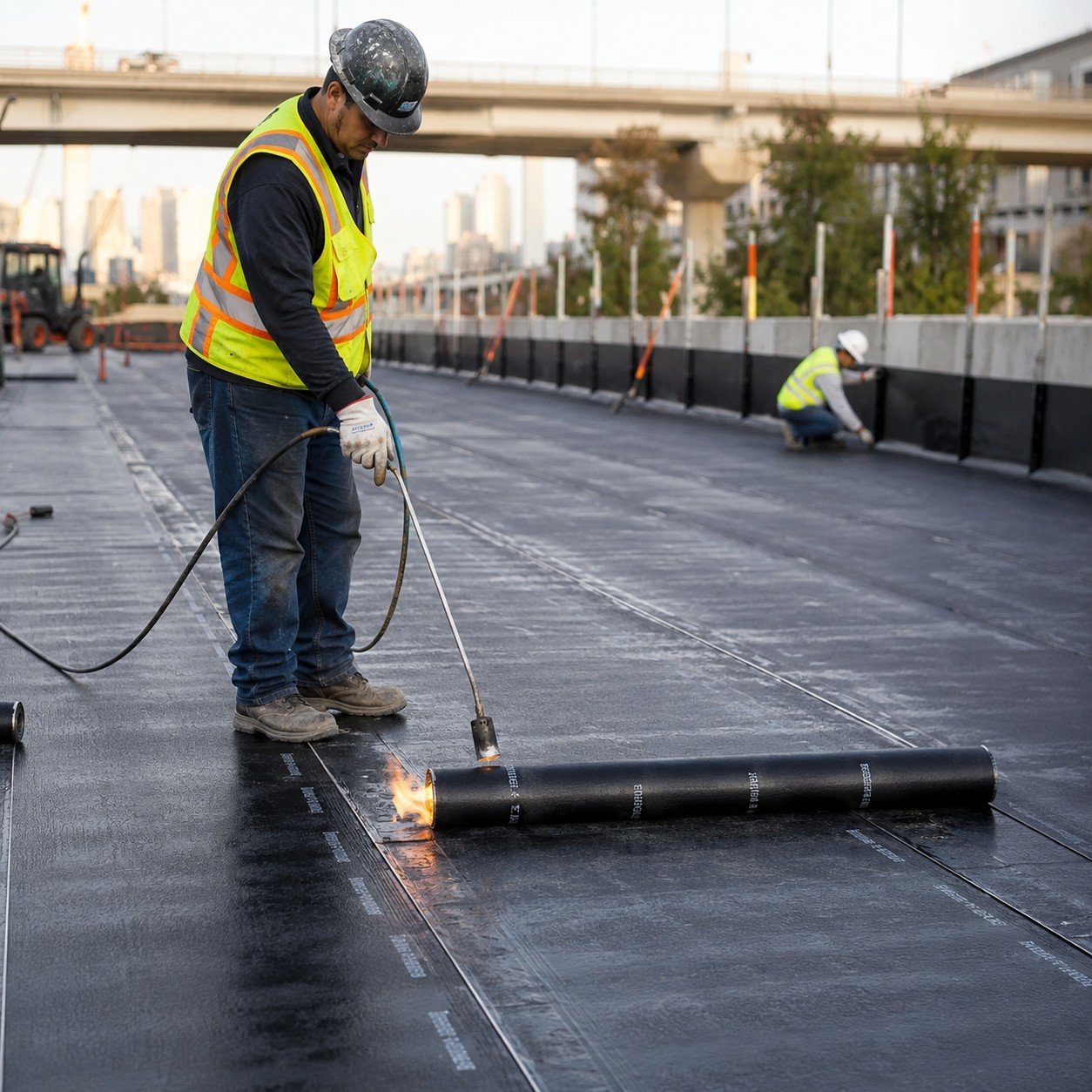

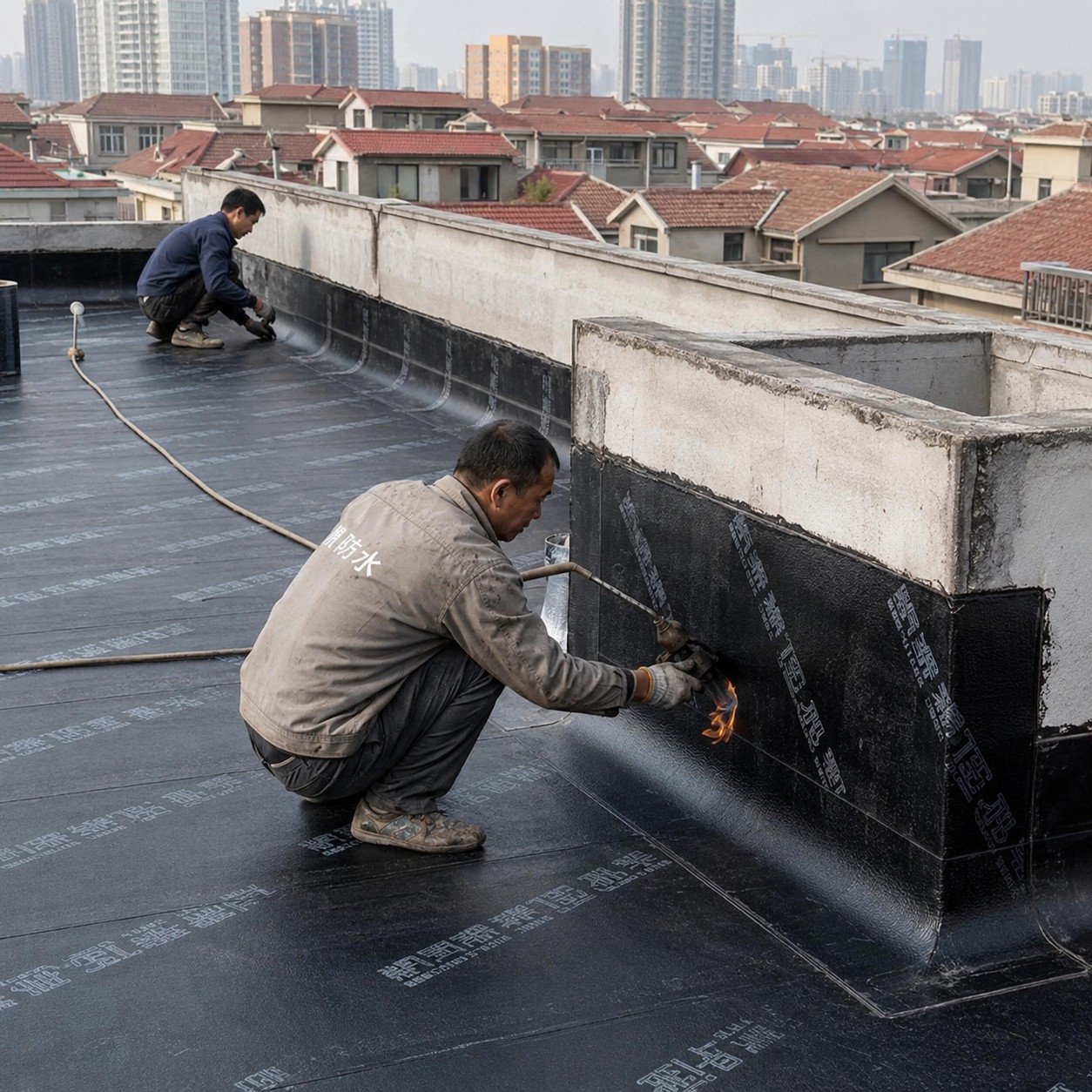

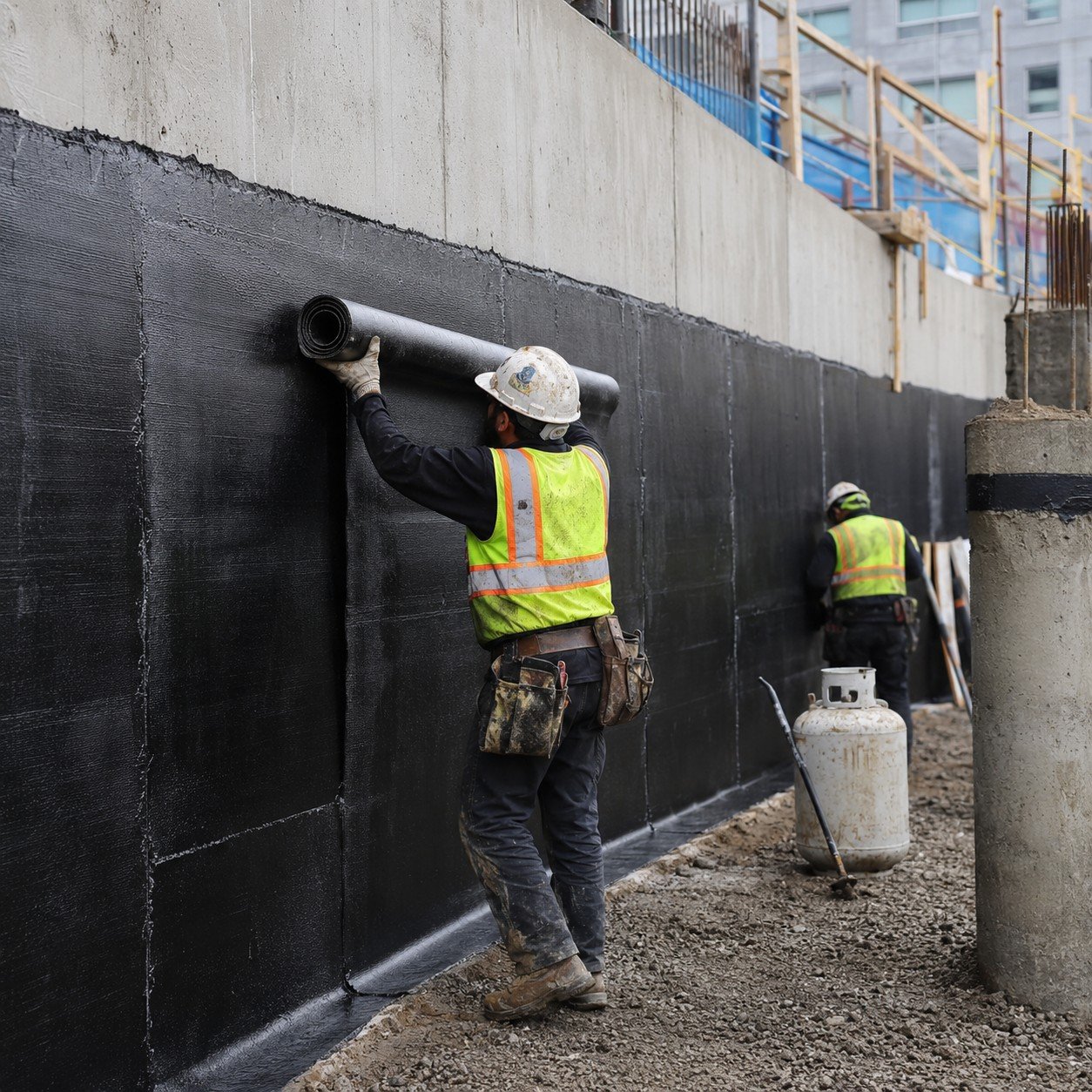

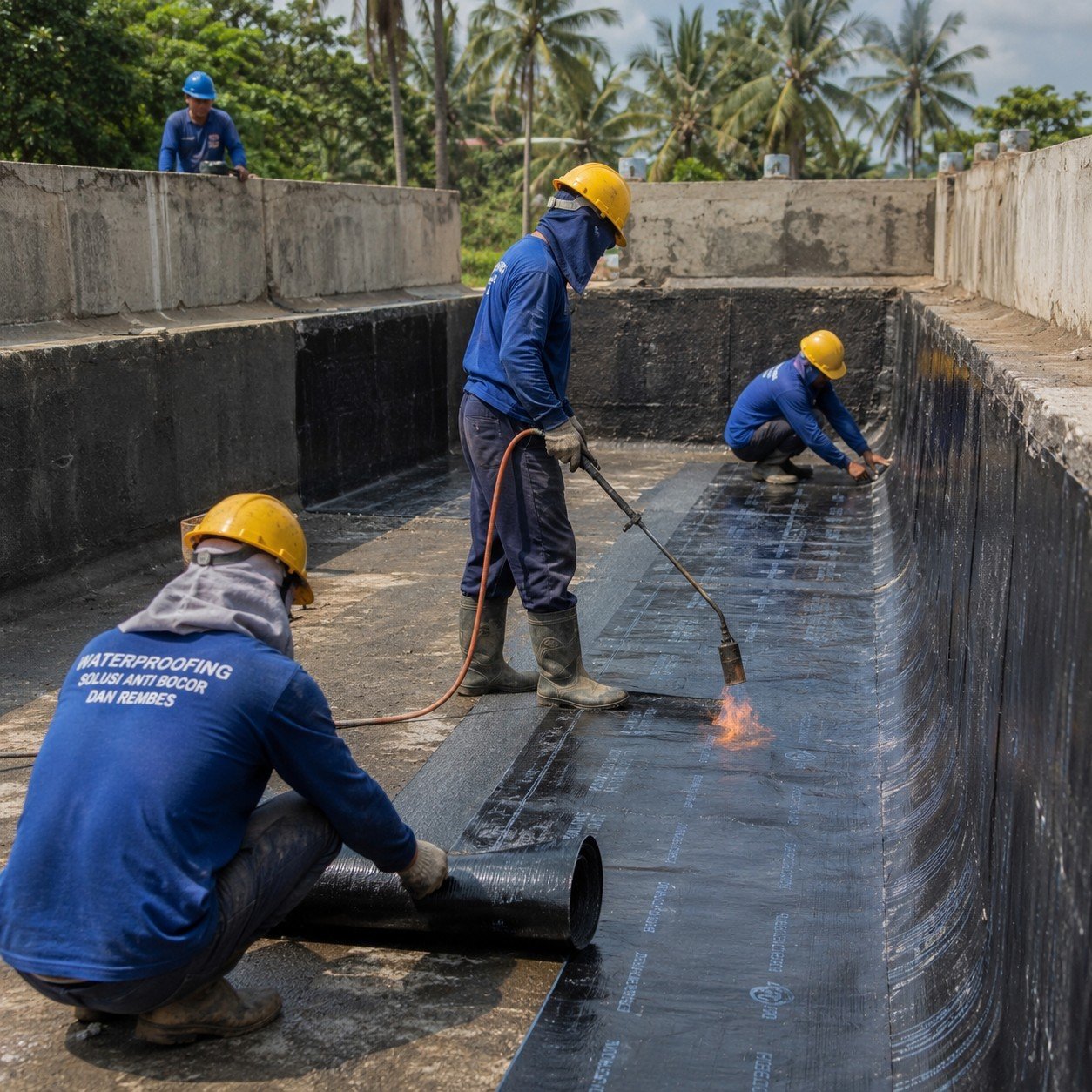

Our Installation Projects
